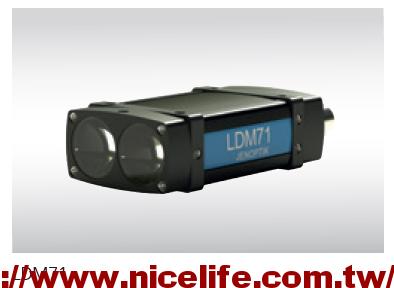

[瀚笙科技] 德國JENOPTIK工業用雷射測距儀 - LDM71 (快速精準移動物體距離量測)

放大圖片

[瀚笙科技] 德國JENOPTIK工業用雷射測距儀 - LDM71 (快速精準移動物體距離量測)

發布時間:2019-02-28

價格:0.00

所在地區:台彎全區

所屬行業:工商服務

關鍵詞:設備 系統 自動化 機器人 工業用雷射測距 距離 量測 雷測 感測 無人載具 無人飛機 頻率 鋼鐵


瀚笙科技股份有限公司

連絡人:劉小姐 Cathy
會員類型:VIP企業會員
信譽指數:0
認證類型:

詳細說明

産品數量
包裝說明
價格說明
産品規格
産品編號
産地 德國
品牌 JENOPTIK


產品特色



[瀚笙科技] 德國JENOPTIK工業用雷射測距儀 - LDM71 (快速精準移動物體距離量測)



The laser rangefinders of the LDM71 series:
Quick and accurate measurement of moving targets.

The LDM71 series are distance-measuring devices developed for measurements of
moving targets. The sensor is characterized by an above-average measured value output
frequency. It can be used for the detection of objects in industrial automation. The sensor
is also well-suited for the monitoring of defined areas in transport. The sensor is offered
as a complete device with industrial standard IP67 as well as for OEM partnerships as
a measuring module for integration into modular systems.

–– Measuring range: 0.2 meter to 270 meter
–– Fast measurement output with a frequency of up to 40 kilohertz
–– Can be used under severe climatic conditions between -40°C and 60°C





產品規格



量測範圍:


Total range: From 0.2 m to 270 m


Range on target board1: From 0.5 m to 270 m


Typical range on natural surface, 80% reflectivity2 : From 0.2 m to 125 m


Typical range on natural surface, 10% reflectivity2 : From 0.2 m to 70 m


Accuracy3 : ± 60 mm (single measurement, 1 σ)


Repeatability4 : ± 25 mm (single measurement, 1 σ)


測量分辨率: 1 mm (decimal output ≤ 15 kHz)


最大量測頻率: 40 kHz


Laser Wavelength: 905 nm (invisible, near-infrared)


Classification: Laser Class 1, EN 60825-1:2014


傳輸介面取決於整體系統需求: RS-232, RS-422


Switching output: 2× "high side"


Analog output: From 4 mA to 20 mA


Measurement operation modes: Single measurement, continuous measuremen


Connectors: 12-pole M12 (Binder 713 series)


電源電壓: From 10 V DC to 30 V DC


工作溫度 : From -20°C to 60°C


濕度: From 10% to 90%, non-condensing


Shock / Vibration: DIN ISO 9022-3


Protection class: IP67


EMC: EN 61326-1


尺寸: 98 mm × 46 mm × 25 mm


重量: Approx. 140 g
